Belts, wide: BW 114

Tear-resistant, antistatic aluminum oxide wide paper belt for high loads
Product benefits
  • Excellent tool life and shorter machining times
  • Antistatic equipment and open grain coating prevent premature clogging with sanding dust
  • Handling is easy thanks to strong F-paper with high edge stability
  • Especially suitable for sanding softwoods
  • Suitable for applications with high grinding pressure

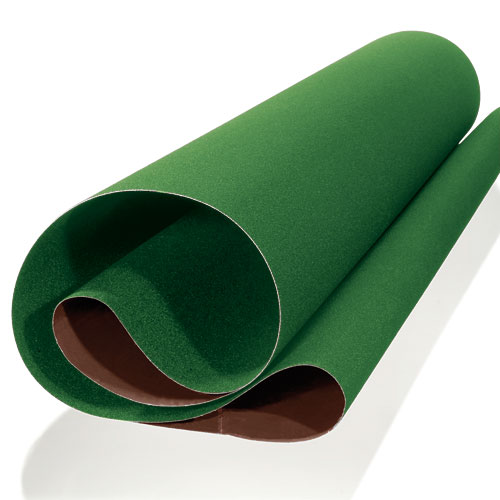

/fileadmin/datapool/Unternehmensgruppe/Produktfinder/Produktbilder/041-11400.jpg
Applications
Furniture:
  • Fine sanding of furniture parts before coating on stationary sanding machines
    Lacquered wood parts:
    • Lacquer sanding on wide belt sanding machines
      Product design
      Type:
      BW 114
      Grain:
      Aluminum oxide
      Bonding:
      Synthetic resin, antistatic
      Backing:
      F-paper
      Coating:
      Open
      Grit range:
      P 40/50/60/80/100/120/150/180/220/240/280/320/360/400/500/600
      Stock programme Belts, wide: BW 114

      UBN overlap joint

    • 36 39/64" / 930 x 74 51/64" / 1900 mm
    • 36 39/64" x 74 51/64" mm
    • 43 5/16" / 1100 x 74 13/16" / 1900 mm
    • 43 5/16" 1100 x 74 13/16" / 1900 mm
    • 43 5/16" x 74 13/16" mm
    • 44 1/2" / 1130 x 86 5/8" / 2200 mm
    • 44 3/32" / 1120 x 74 13/16" / 1900 mm
    • 44 3/32" / 1120 x 78 3/4" / 2000 mm
    • 44 3/32" / 1120 x 84 5/8" / 2150 mm
    • 44 3/32" x 74 13/16" mm
    • 44 3/32" x 78 3/4" mm
    • 44 3/32" x 84 5/8" mm
    • 51 3/16" / 1300 x 74 13/16" / 1900 mm
    • 51 3/16" x 74 13/16" mm
    • 53 5/32" / 1350 x 103 5/32" / 2620 mm
    • 53 5/32" x 103 5/32" mm
    • 53 15/16" x 103 5/32" mm
    • 54 11/32" / 1380 x 84 21/32" / 2150 mm
    • 54 11/32" / 1380 x 103 5/32" / 2620 mm
    • 54 11/32" x 103 5/32" mm
    • 55 1/8" / 1400 x 103 5/32" / 2600 mm
    • 55 1/8" x 103 5/32" mm
    • 930 x 1525 mm
    • 1360 x 1900 mm
    • 1575 x 3200 mm
    • 2061 x 3200 mm
    • 3000 x 3200 mm
    • x mm

      • UB8 overlap joint, top-skived

    • 53 5/32" / 1350 x 103 5/32" / 2620 mm

      • Pictogram - material qualification steel suitable
      Pictogram - material qualification stainless steel suitable
      Pictogram - material qualification high-alloy steel suitable
      Pictogram - material qualification non-ferrous metal suitable
      Pictogram - material qualification hardwood very suitable
      Pictogram - material qualification softwood very suitable
      Pictogram - material qualification boards suitable
      Pictogram - material qualification lacquer suitable
      Pictogram - material qualification composite suitable
      Very suitable
      Suitable

      Other dimensions and designs on request

      Download
      Product Data Sheet as a PDFUS Safety Data Sheet, Group BVoluntary-Product-Information_G1.pdf
